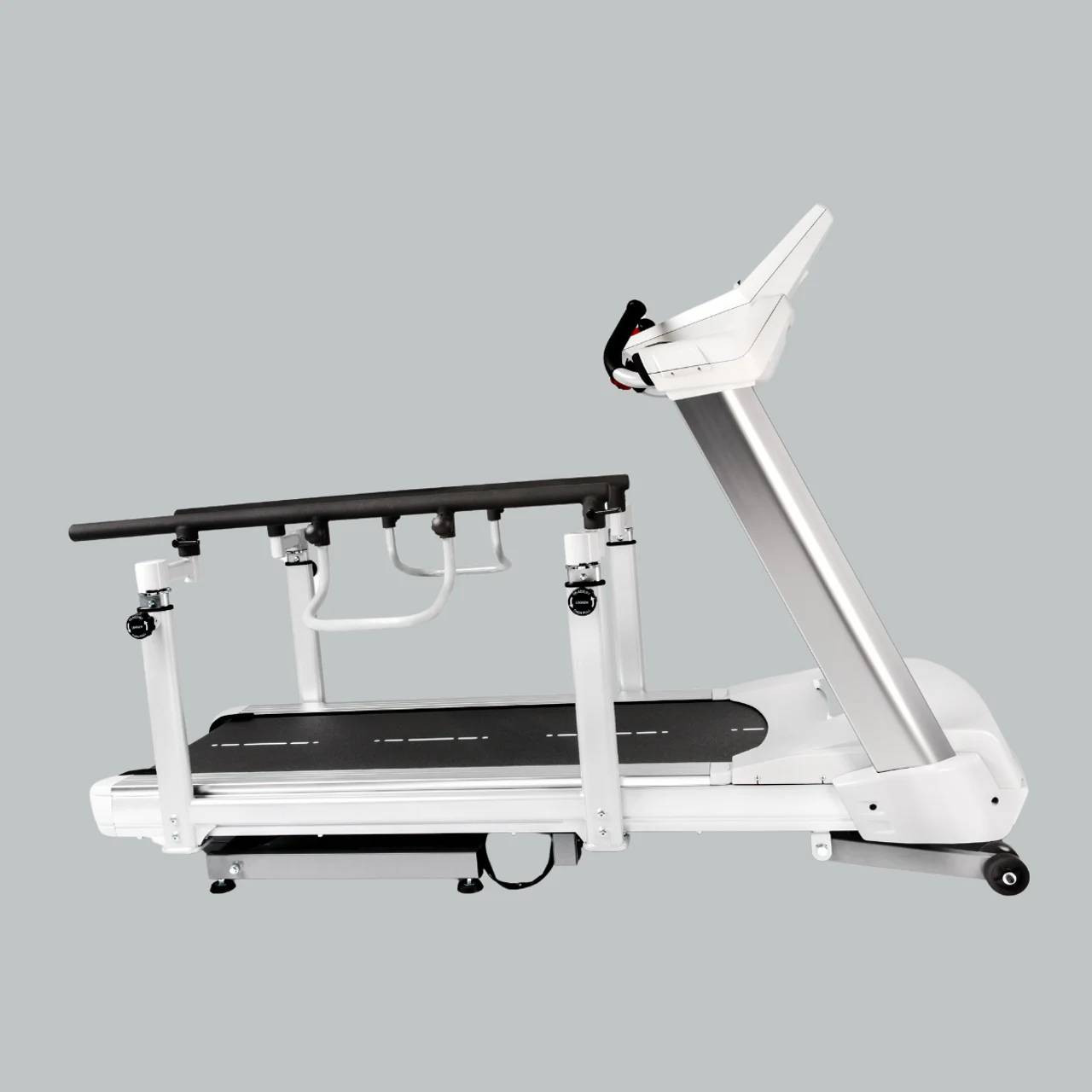

Spirit Fitness Rehab 7.0T Treadmill
Spirit Fitness Rehab 7.0T Treadmill.
The supplied data sheet prints an inconsistent power value. Electrical requirements are omitted pending supplier confirmation; consult the owner’s manual and a qualified installer.
Product specifications
| Incline | -10% to 15% |
|---|---|
| Bidirectional Speed | Forward 0.1 - 10 mph and reverse 0.1 - 3 mph in 0.1 increments |
| Motor | 3HP continuous duty, IEC Class S6 |
| Belt and Deck | 22” x 60” self-lubricating deck |
| Max User Weight | 440 lb / 200 kg |
| Dimensions | 94.8” (83.7” w/o rear step) x 48.7” x 57.5” |
| Product Weight | 496 lb |
| Current Leakage Protection | Yes, with EMC Filter |
Sources & additional product information
- Data Sheet.pdf · page 1
- Owners Manual.PDF
Data Sheet

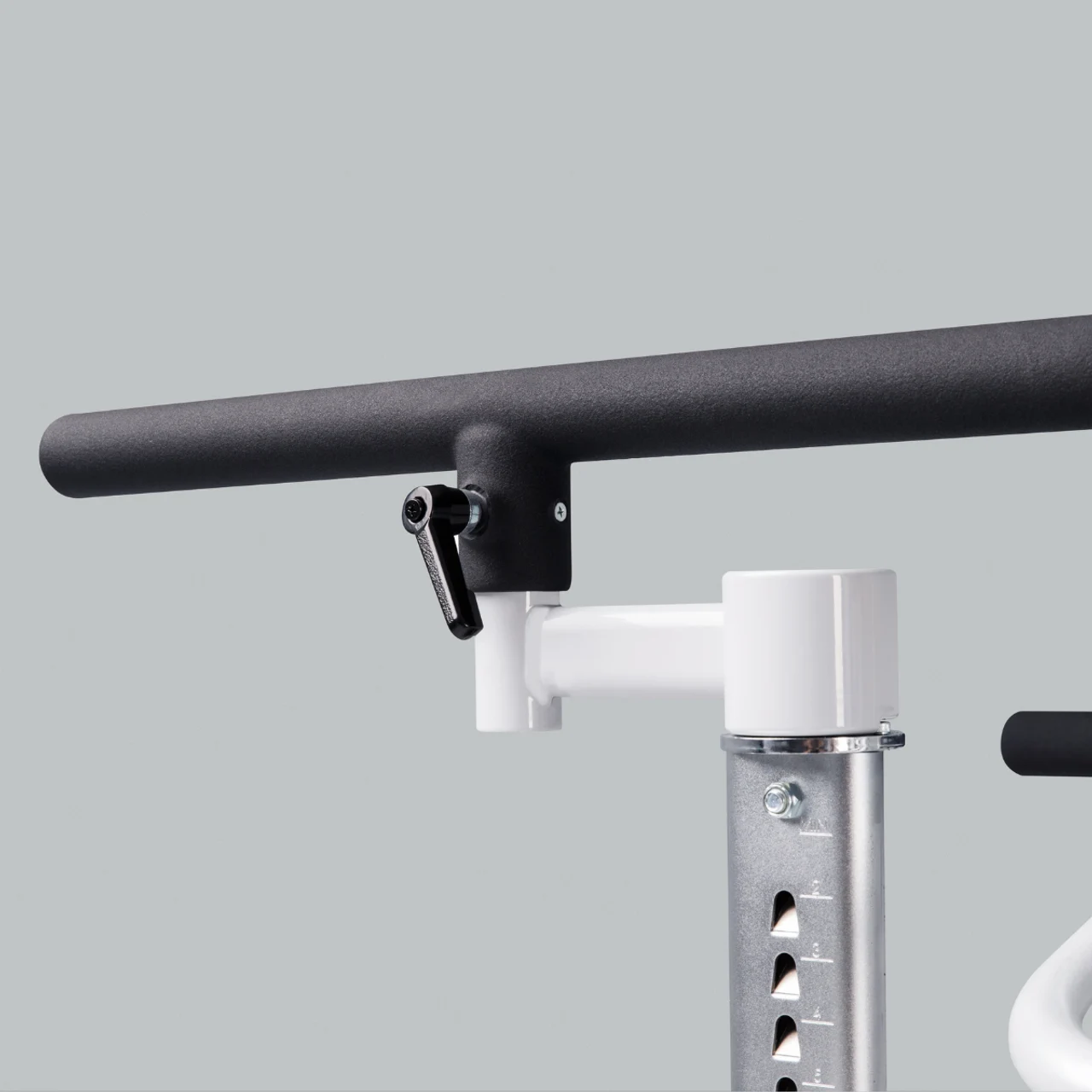

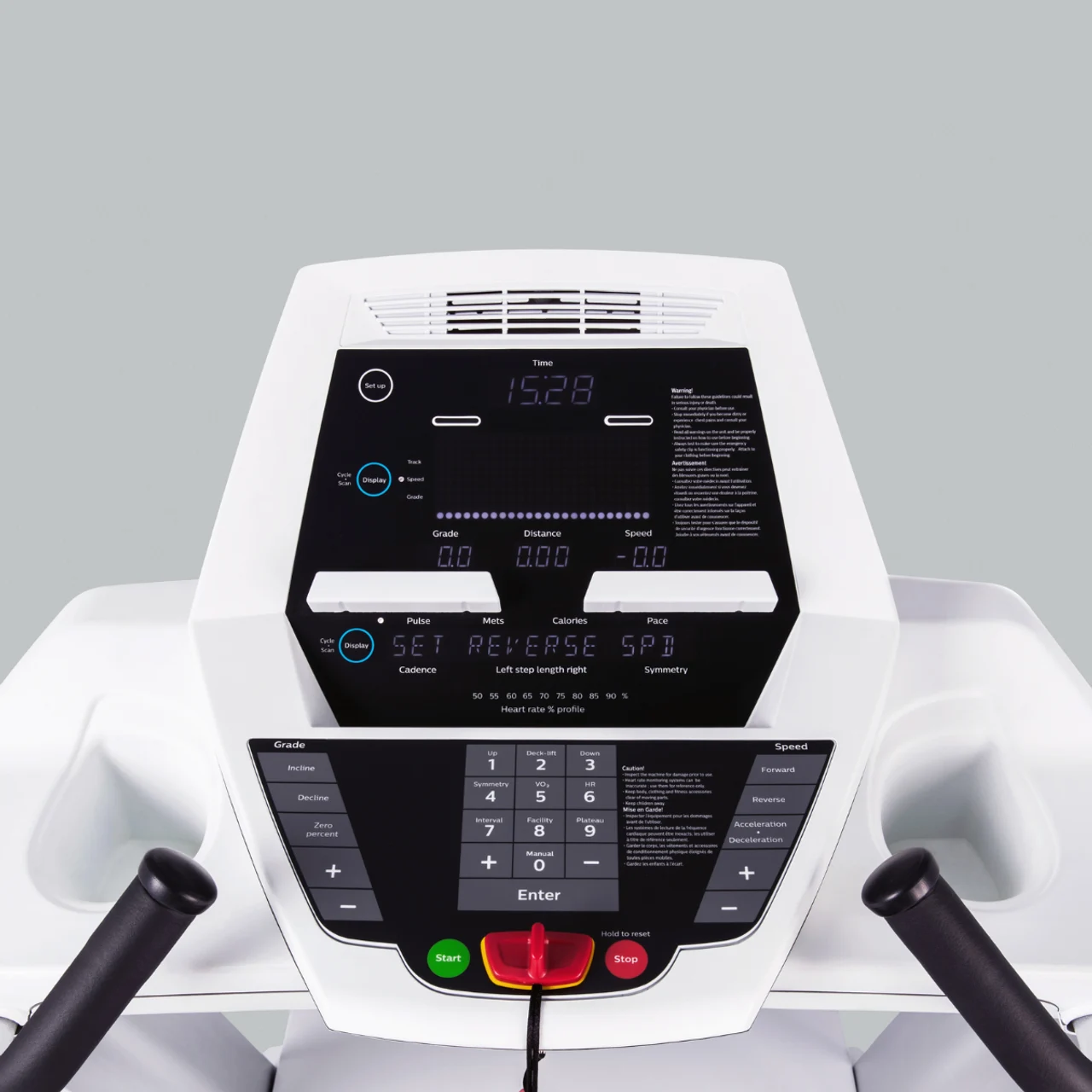

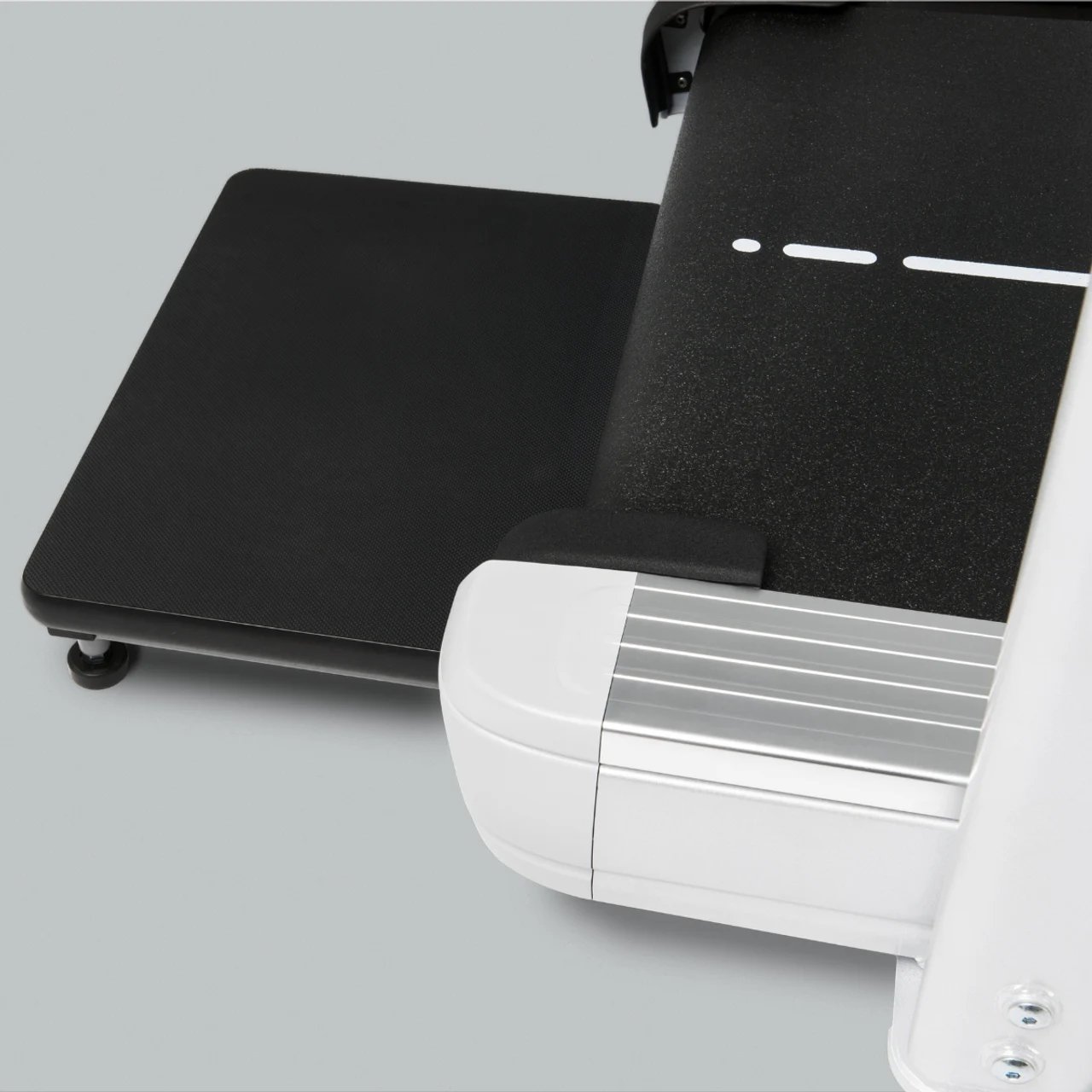

Treadmill 7.0T The 7.0T treadmill is engineered to deliver superior rehabilitation and patient results. With a comprehensive suite of features, users can enhance their therapy sessions like never before. This treadmill provides exceptional flexibility, allowing you to tailor every session to meet each client's unique needs: • Full-length, adjustable height handrails for added stability • -10% - 15% decline/incline range • Low starting speed and step-up block for easy on/off access • 3.0 HP motor with bidirectional walking direction capabilities • Current Leakage Protection with EMC Filter The 7.0T is designed to withstand intense therapeutic sessions, making it the ideal choice for any commercial therapy setting. Intuitive, easy-to-read display Fully adjustable parallel bars support Front and rear motors allow for true a wide variety of users up/down walking Specifications Incline -10% to 15% Bidirectional Speed Forward 0.1 - 10 mph and reverse 0.1 - 3 mph in 0.1 increments Motor 3HP continuous duty, IEC Class S6 Belt and Deck 22” x 60” self-lubricating deck Power 15 volts AC, 60Hz, 20 amps, NEMA-20P Max User Weight 440 lb / 200 kg Dimensions 94.8” (83.7” w/o rear step) x 48.7” x 57.5” Product Weight 496 lb Current Leakage Protection Yes, with EMC Filter Compliance CAN/CAS-C22.2 No. 60601-1:14, ANS/AAMI ES60601-1:2005+A2 (R2012) +A1 IEC 60601-1-2:2014, EN 60601-1-2:2015 IEC 60601-1:2015+A1:2012, EN 60601-1:2006+A1:2013+A12:2014 EN ISO 20957:2013, MDD 93/42/EEC Class IIa, NB: 0123 Warranty - Commercial (Dues paying) 5 years parts, 1 years labor Rehab / Light Commercial spiritfitness.com Treadmill 7.0T
