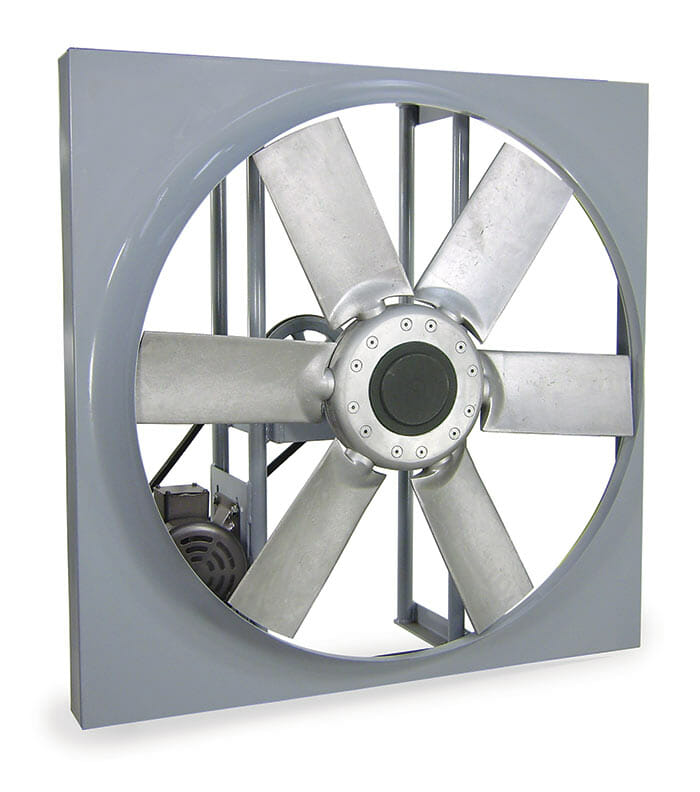

Description
Features

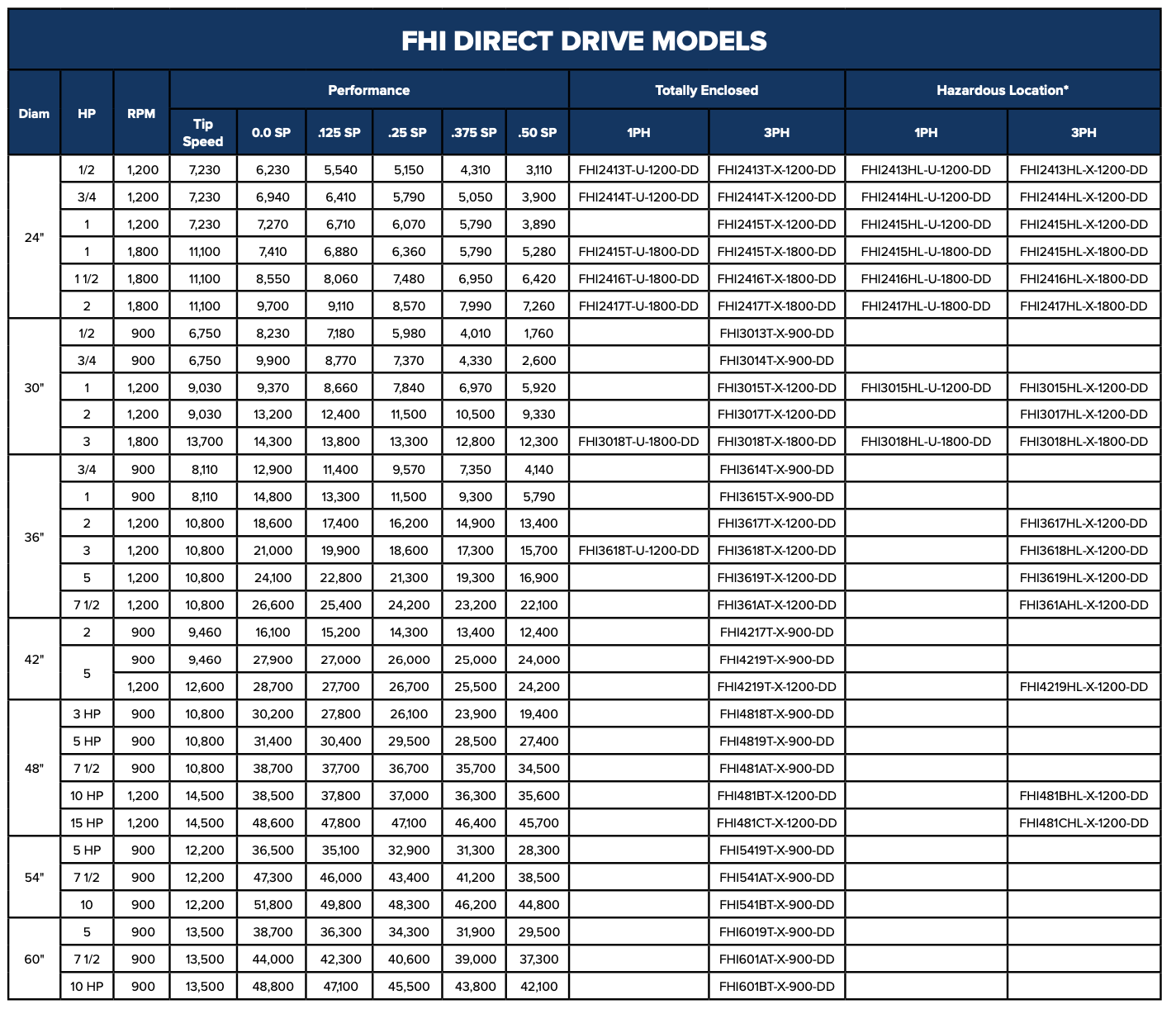

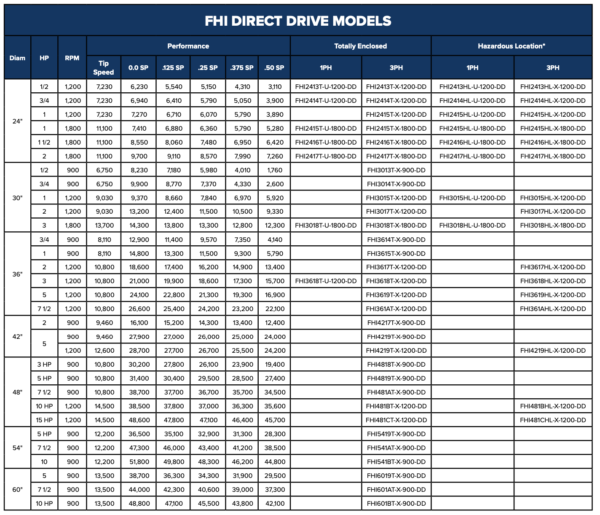

- 16” to 84” blade diameter models available(60” for direct drive)
- 3,610 CFM to 115,800 CFM
- Durable gray polyester powder coat finish
- Deep spun venturi type orifice for quieter,more efficient operation
- Rugged all welded structural frame for added support and lower vibration added support and lower vibration
- Heavy duty self aligning ball bearing pillow blocks, to ensure long maintenance free operation
- Taper lock bushing betweenpropeller and shaft for easeof removal, should it becomenecessary

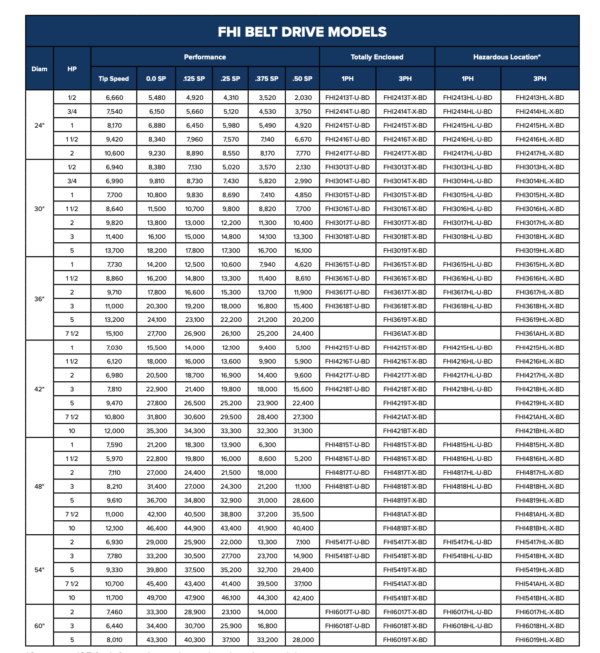

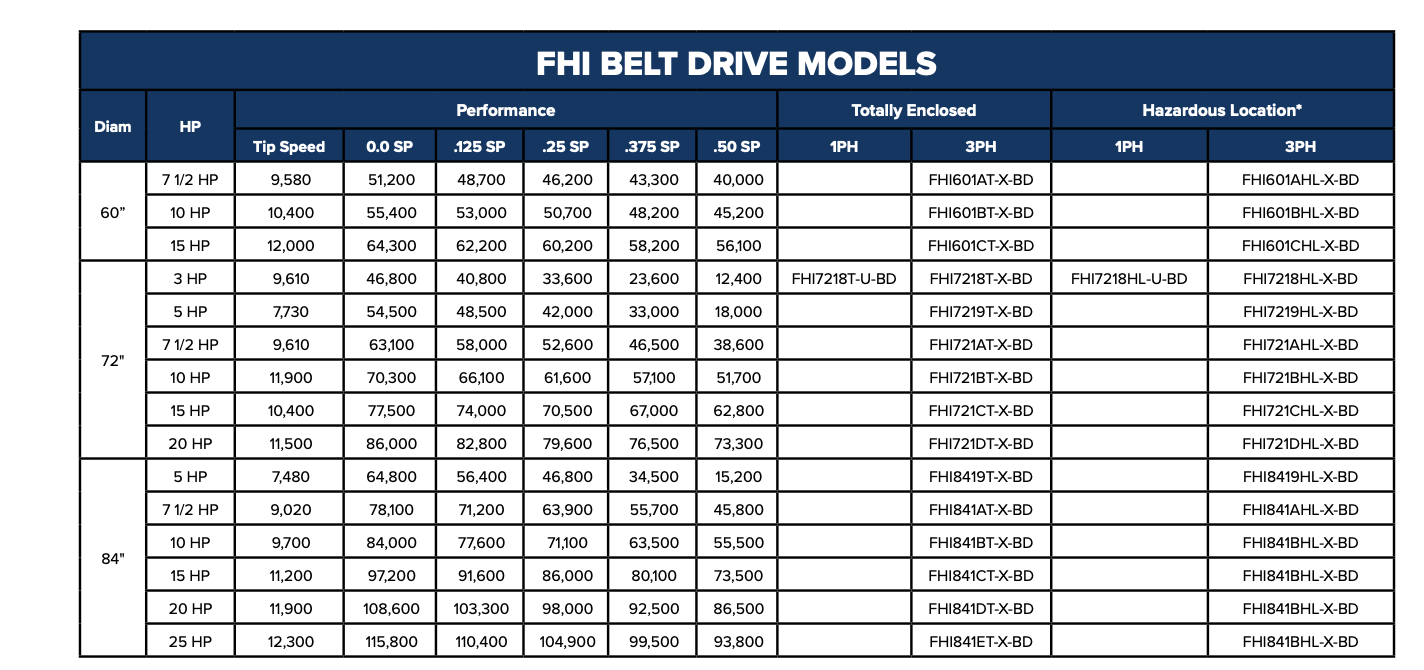

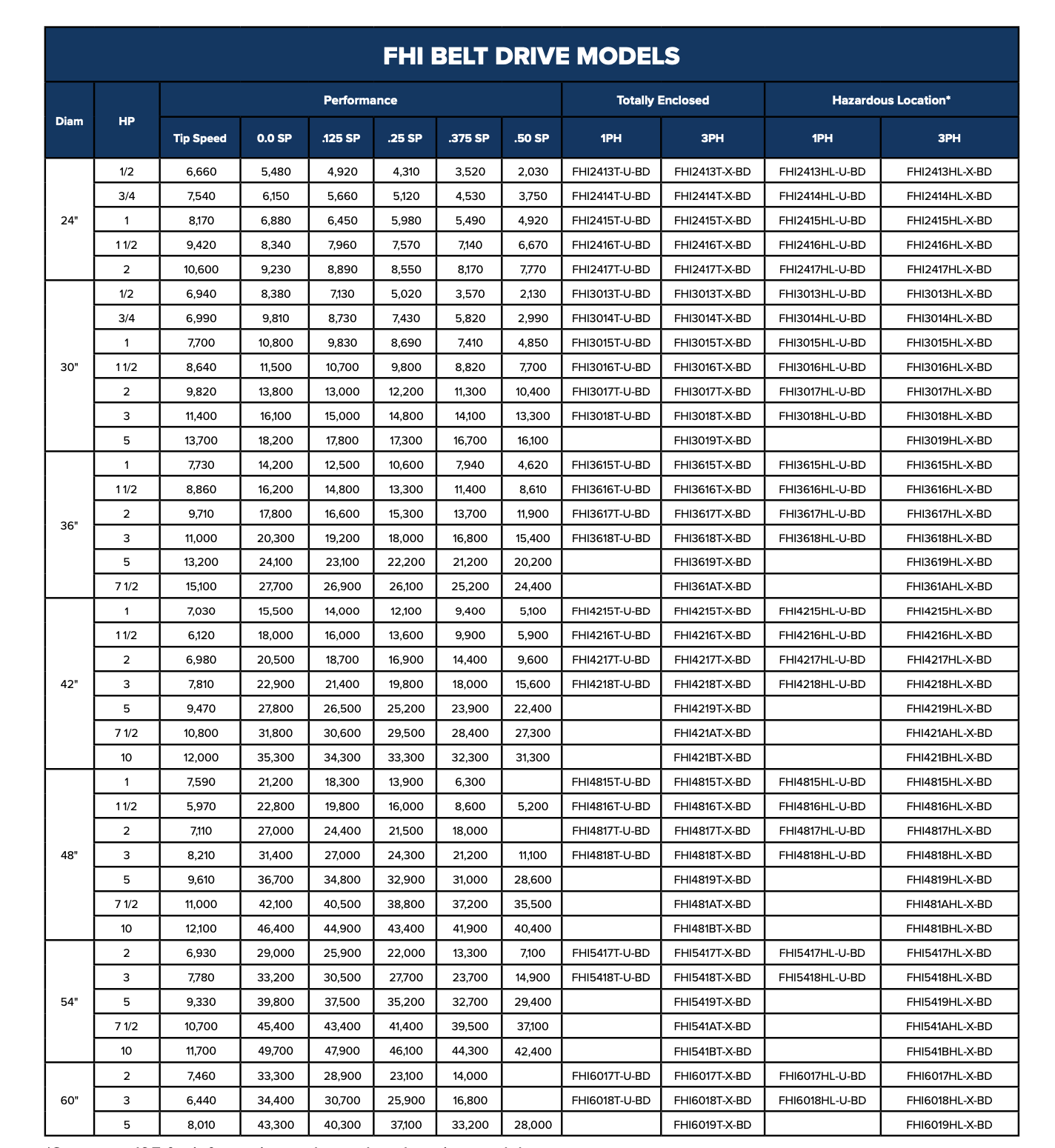

- Heavy duty V belt drive withcast iron sheaves, dynamicallybalanced fan and motor sheavesand extra strength V belts
- Split tapered standard drive hubspermit easy removal of the fanfrom the shaft for maintenancepurposes
- Optional temperature control available for some models
