Plastic Products Catalog.pdf · p. 6SS43 Plastic Pallet

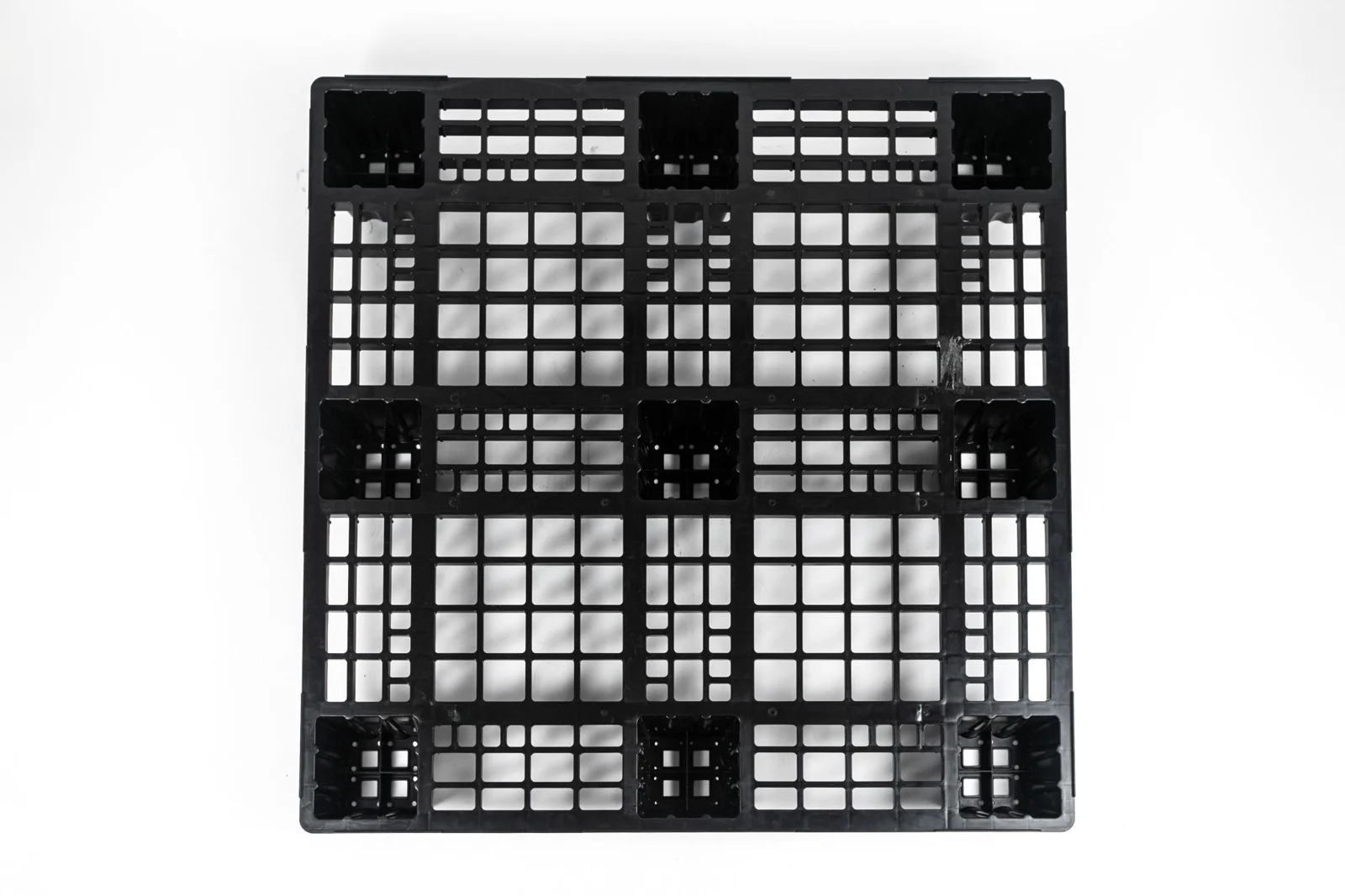

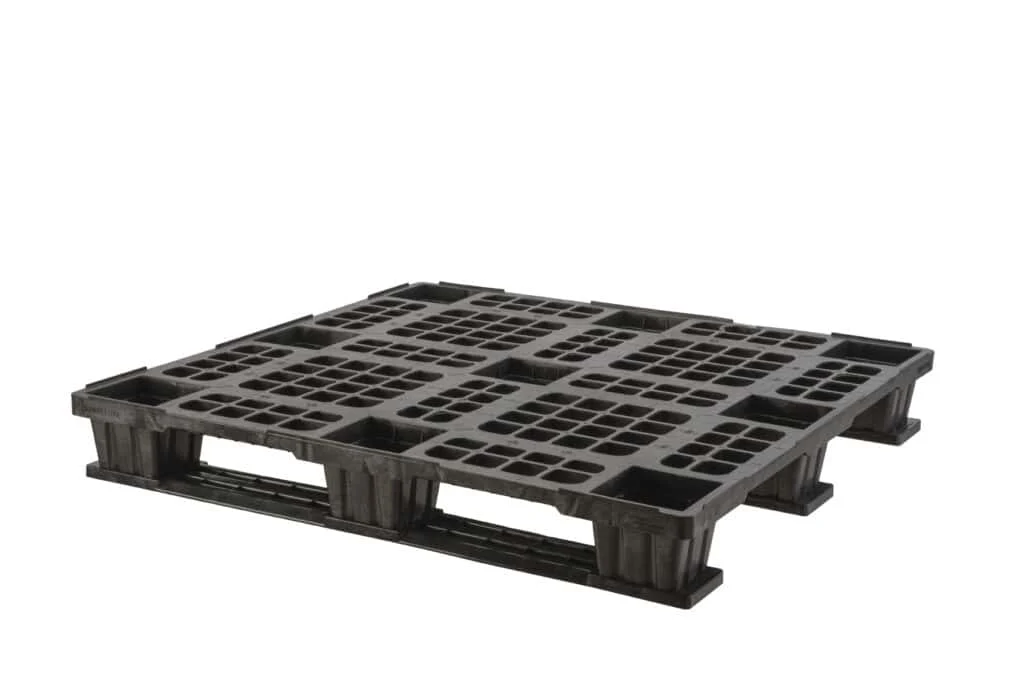

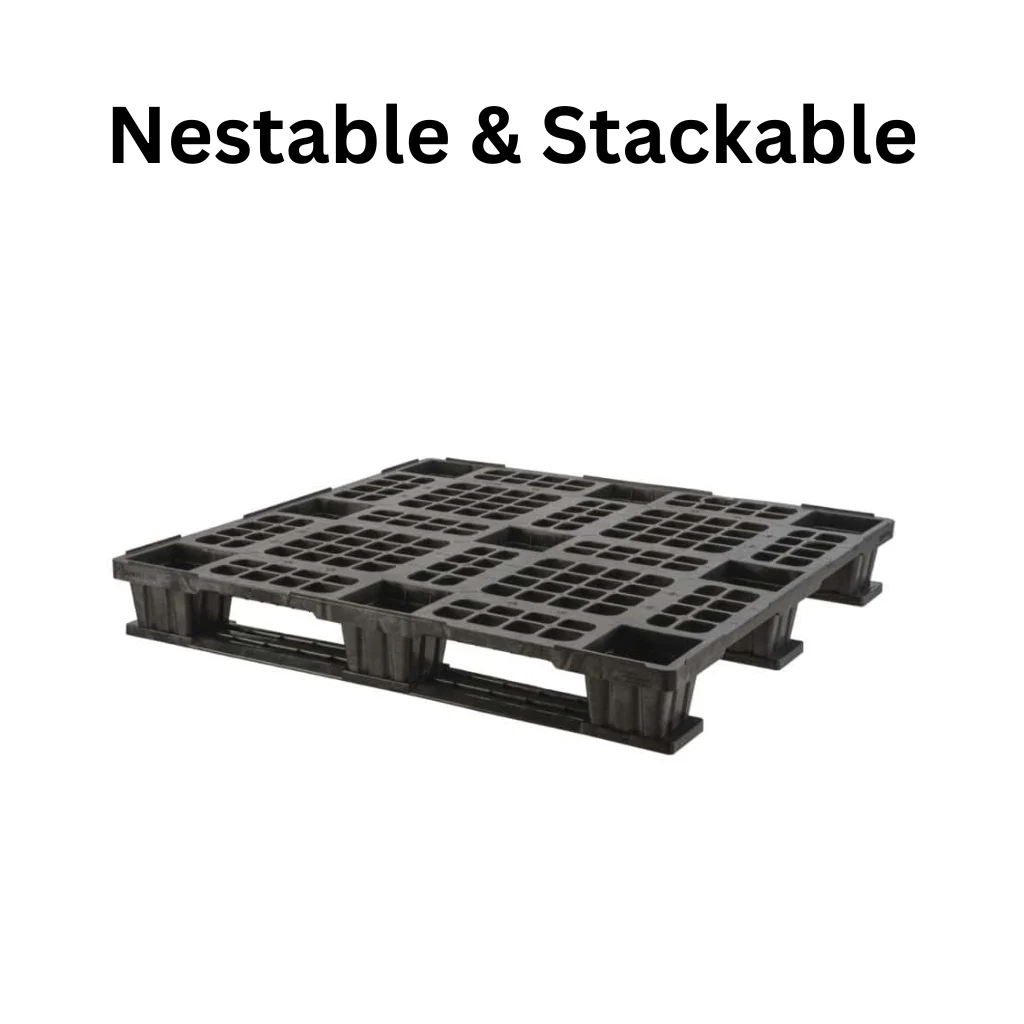

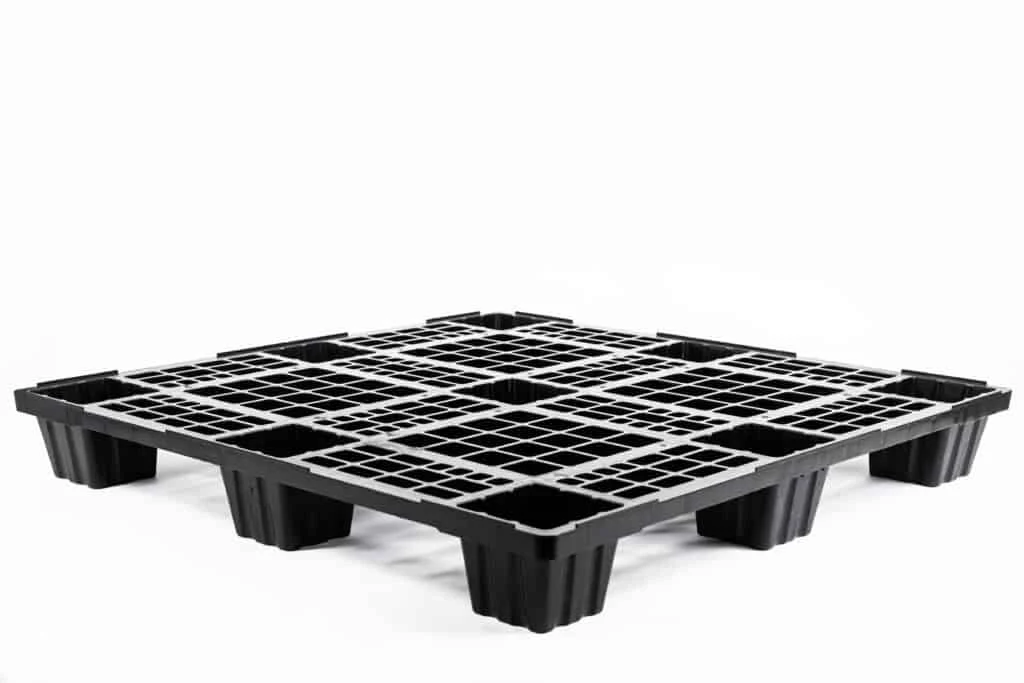

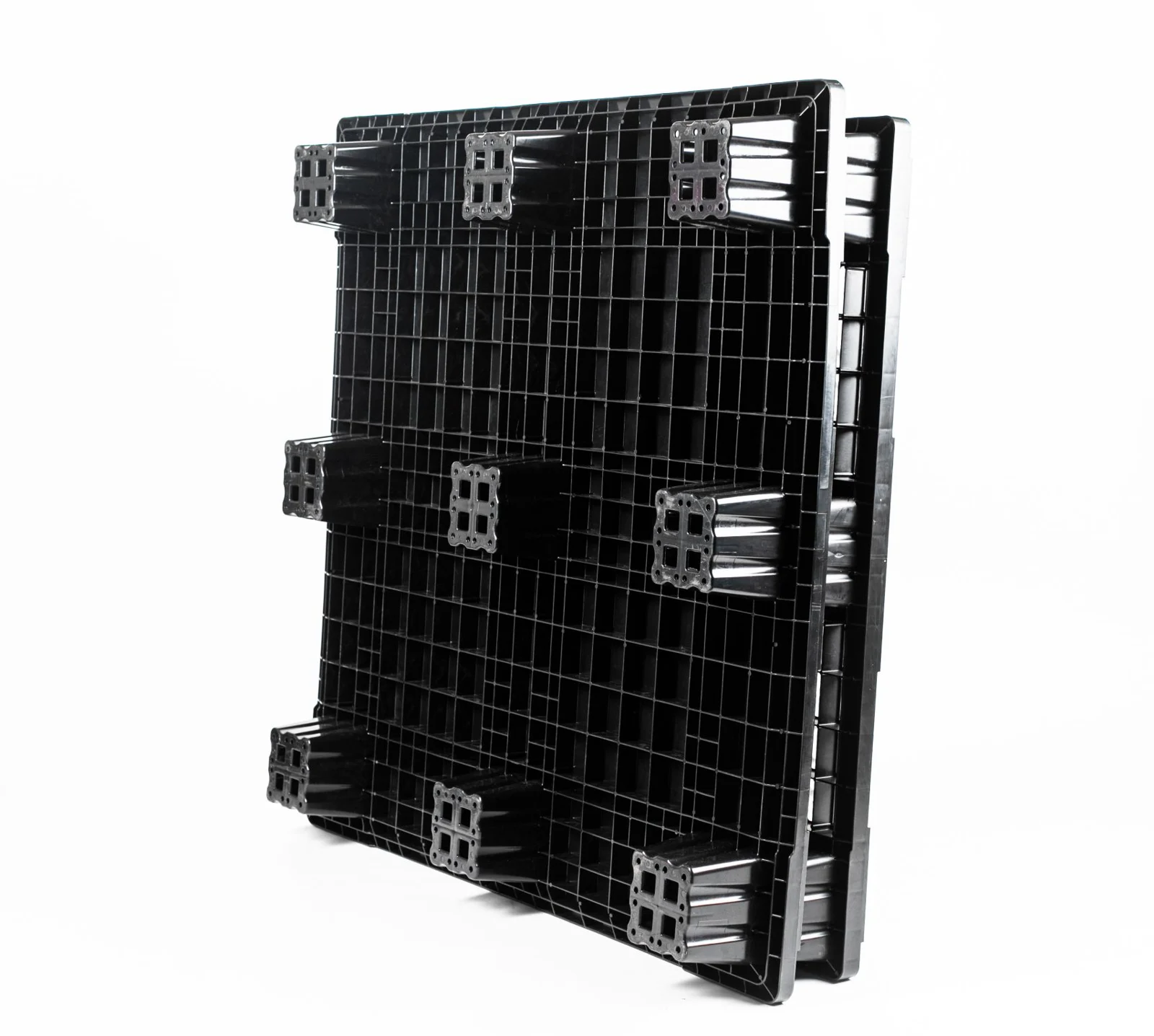

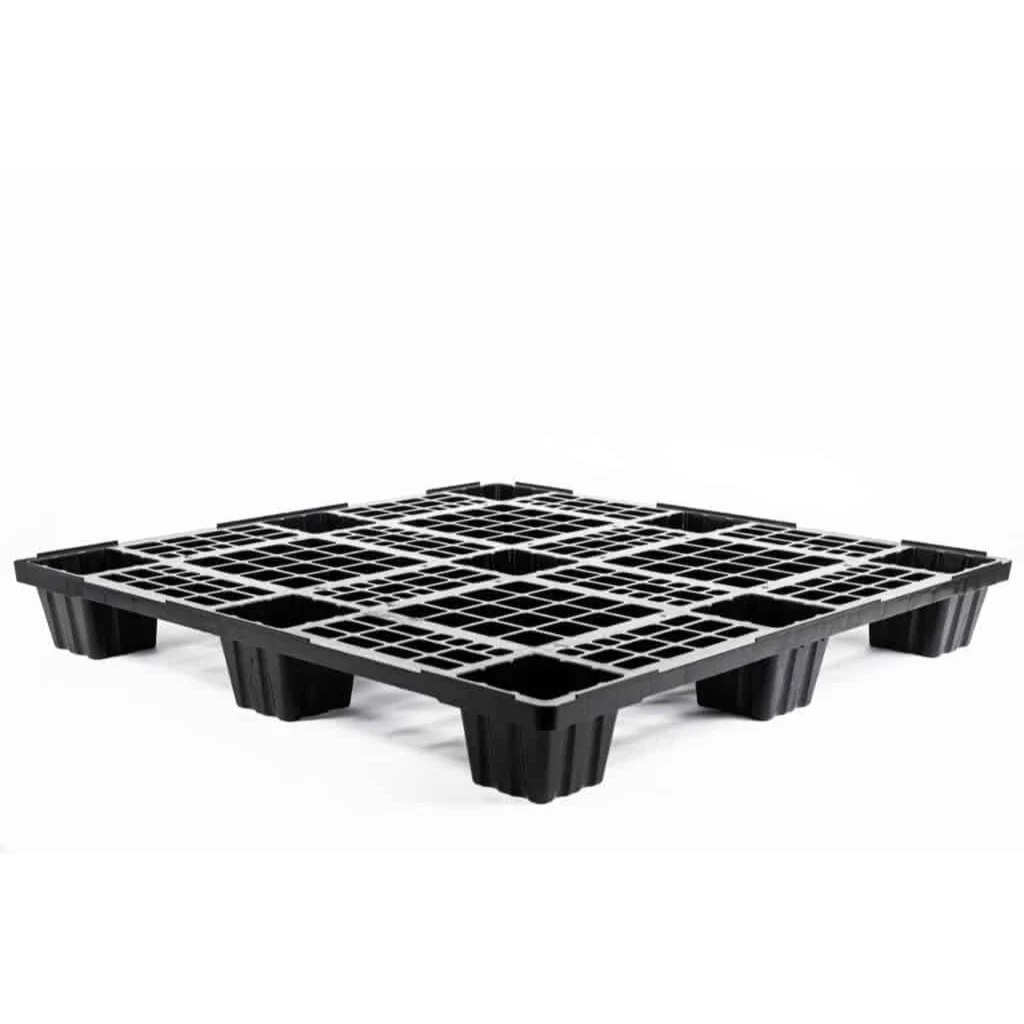

The SS43 & SS44 pallet is an isometric, nestable pallet featuring a robust structure and durable design to ensure load stability and safety. Cost-effective, recyclable, and environmentally friendly, it offers customization options such as safety rims and light skids for enhanced stacking security and smooth conveyor operation.
The workbook and general brochure disagree on dimensions, weight and transport quantities. The specifications below are the brochure values; confirm the required configuration with the supplier.
Product specifications

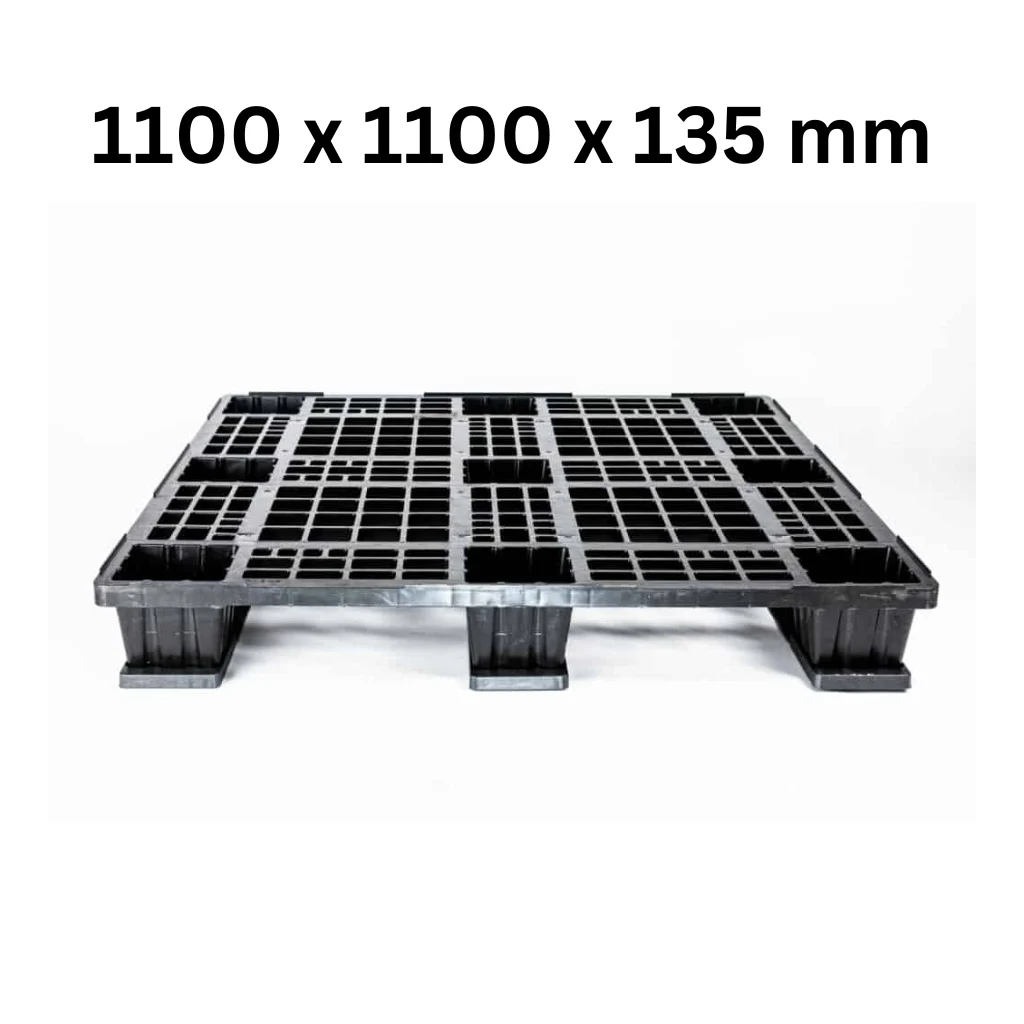

| Dimensions (L × W × H) | 1100 × 1100 × 135 mm |
|---|---|
| Weight | 7 kg |
| Dynamic load | 1500 kg |
| Static load | 3000 kg |
| Units per stack | 60 |
| Units per 53 ft truck | 1680 |
| Units per 40HC | 1200 |
Sources & additional product information
- Product Descriptions - 3_17_25.xlsx · Plastic Products · row 12
- Plastic Products Catalog.pdf · page 6
Product description
The SS43 & SS44 pallet is an isometric, nestable pallet featuring a robust structure and durable design to ensure load stability and safety. Cost-effective, recyclable, and environmentally friendly, it offers customization options such as safety rims and light skids for enhanced stacking security and smooth conveyor operation.
Workbook specification / logistics for comparison
Open Deck 3 Runners | Dimensions: 43X43X5 in (1092x1092x127 mm) | Weight: 20.37 lbs (9.2 kg) | Material: PP / HDPE Open Deck 3 Runners | Static Load: 3000 kg / 6614 lbs | Dynamic Load: 1500 kg / 3307 lbs | Rack Load: - | Units Per Stack: 18 | Units Per 40hc: 340 | Units per 53' Truck: 53
Request a quotation
Confirm pricing, availability and your required configuration with Sun Shield.
