Product documents

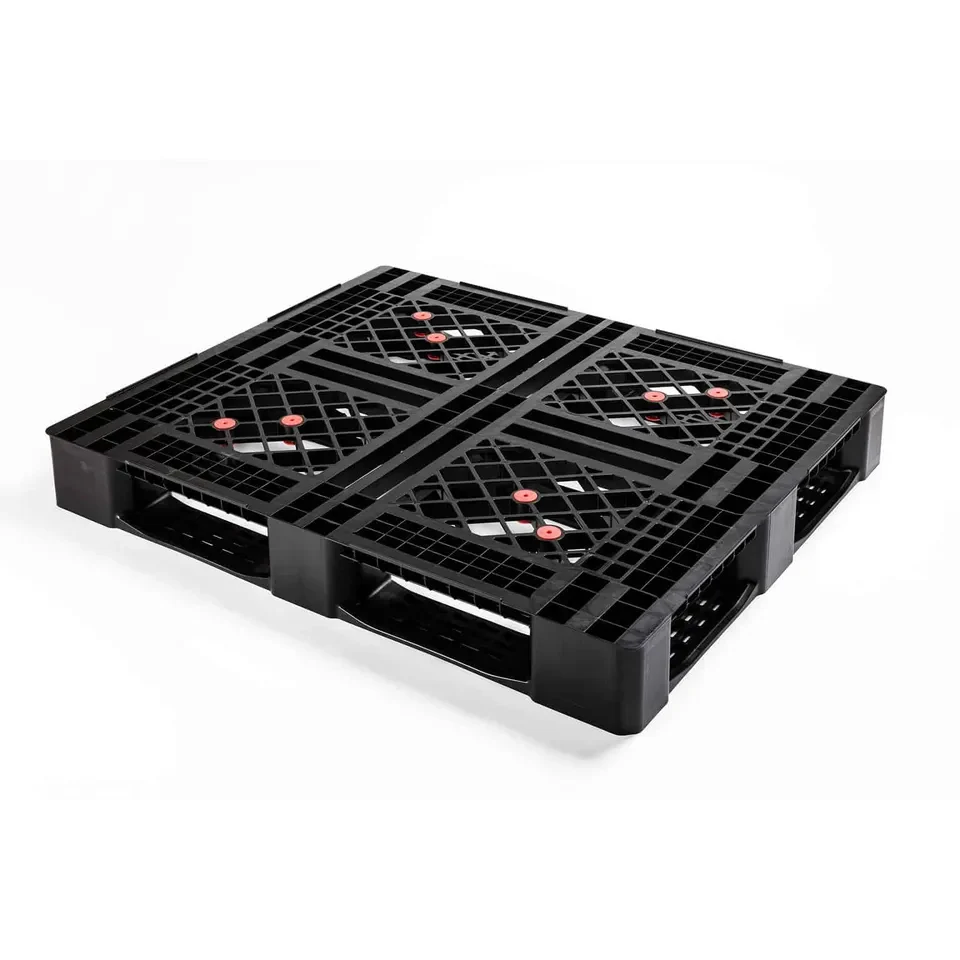

Plastic Products Catalog.pdf · p. 5SS14 Plastic Pallet
A lightweight, full-perimeter pallet equipped with six skids, offering enhanced stability and support for various applications.
The workbook and general brochure disagree on dimensions, weight and transport quantities. The specifications below are the brochure values; confirm the required configuration with the supplier.
Product specifications

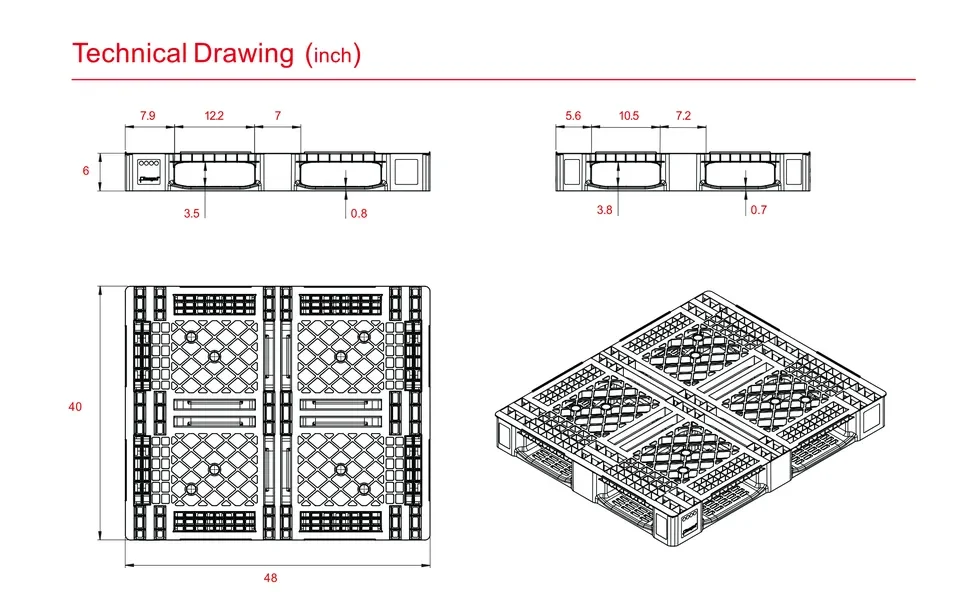

| Dimensions in brochure (metric) | 1219 × 1016 × 150 mm |
|---|---|
| Weight | 11.3 kg |
| Dynamic load | 2000 kg |
| Static load | 3200 kg |
| Rack load | 700 kg |
| Units per stack | 18 |
| Units per 53 ft truck | 540 |
| Units per 40HC | 357 |
Sources & additional product information
- Product Descriptions - 3_17_25.xlsx · Plastic Products · row 11
- Plastic Products Catalog.pdf · page 5
Product description
A lightweight, full-perimeter pallet equipped with six skids, offering enhanced stability and support for various applications.
Workbook specification / logistics for comparison
Open Deck 6 Runners | Dimensions: 48X40X6 in (1219x1016x152 mm) | Weight: 24.69 lbs (11.2 kg) | Material: PP / HDPE Open Deck 6 Runners | Static Load: 3200 kg / 7055 lbs | Dynamic Load: 2000 kg / 4410 lbs | Rack Load: 700 kg / 1543 lbs | Units Per Stack: 17 | Units Per 40hc: 340 | Units per 53' Truck: 50
Request a quotation
Confirm pricing, availability and your required configuration with Sun Shield.
