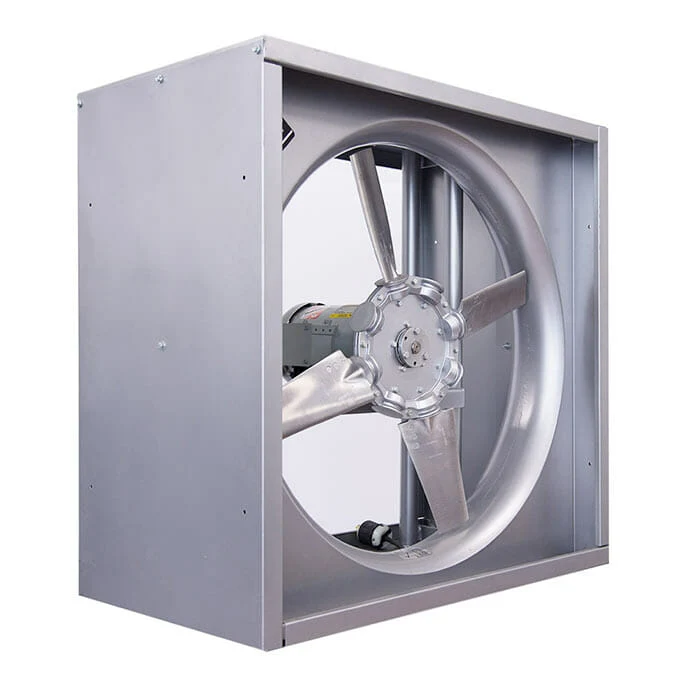

FHI Severe Duty Exhaust and Supply Fans

FHI DIRECT DRIVE MODELS Performance Totally Enclosed Hazardous Location* Diam HP RPM Tip 0.0 SP .125 SP .25 SP .375 SP .50 SP 1PH 3PH 1PH 3PH Speed 1/2 1,200 7,230 6,230 5,540 5,150 4,310 3,110 FHI2413T-U-1200-DD FHI2413T-X-1200-DD FHI2413HL-U-1200-DD FHI2413HL-X-1200-DD 3/4 1,200 7,230 6,940 6,410 5,790 5,050 3,900 FHI2414T-U-1200-DD FHI2414T-X-1200-DD FHI2414HL-U-1200-DD FHI2414HL-X-1200-DD 1 1,200 7,230 7,270 6,710 6,070 5,790 3,890 FHI2415T-X-1200-DD FHI2415HL-U-1200-DD FHI2415HL-X-1200-DD 24" 1 1,800 11,100 7,410 6,880 6,360 5,790 5,280 FHI2415T-U-1800-DD FHI2415T-X-1800-DD FHI2415HL-U-1800-DD FHI2415HL-X-1800-DD 1 1/2 1,800 11,100 8,550 8,060 7,480 6,950 6,420 FHI2416T-U-1800-DD FHI2416T-X-1800-DD FHI2416HL-U-1800-DD FHI2416HL-X-1800-DD 2 1,800 11,100 9,700 9,110 8,570 7,990 7,260 FHI2417T-U-1800-DD FHI2417T-X-1800-DD FHI2417HL-U-1800-DD FHI2417HL-X-1800-DD 1/2 900 6,750 8,230 7,180 5,980 4,010 1,760 FHI3013T-X-900-DD 3/4 900 6,750 9,900 8,770 7,370 4,330 2,600 FHI3014T-X-900-DD 30" 1 1,200 9,030 9,370 8,660 7,840 6,970 5,920 FHI3015T-X-1200-DD FHI3015HL-U-1200-DD FHI3015HL-X-1200-DD 2 1,200 9,030 13,200 12,400 11,500 10,500 9,330 FHI3017T-X-1200-DD FHI3017HL-X-1200-DD 3 1,800 13,700 14,300 13,800 13,300 12,800 12,300 FHI3018T-U-1800-DD FHI3018T-X-1800-DD FHI3018HL-U-1800-DD FHI3018HL-X-1800-DD 3/4 900 8,110 12,900 11,400 9,570 7,350 4,140 FHI3614T-X-900-DD 1 900 8,110 14,800 13,300 11,500 9,300 5,790 FHI3615T-X-900-DD 2 1,200 10,800 18,600 17,400 16,200 14,900 13,400 FHI3617T-X-1200-DD FHI3617HL-X-1200-DD 36" 3 1,200 10,800 21,000 19,900 18,600 17,300 15,700 FHI3618T-U-1200-DD FHI3618T-X-1200-DD FHI3618HL-X-1200-DD 5 1,200 10,800 24,100 22,800 21,300 19,300 16,900 FHI3619T-X-1200-DD FHI3619HL-X-1200-DD 7 1/2 1,200 10,800 26,600 25,400 24,200 23,200 22,100 FHI361AT-X-1200-DD FHI361AHL-X-1200-DD 2 900 9,460 16,100 15,200 14,300 13,400 12,400 FHI4217T-X-900-DD 42" 900 9,460 27,900 27,000 26,000 25,000 24,000 FHI4219T-X-900-DD 5 THE FHI SERIES 1,200 12,600 28,700 27,700 26,700 25,500 24,200 FHI4219T-X-1200-DD FHI4219HL-X-1200-DD 3 HP 900 10,800 30,200 27,800 26,100 23,900 19,400 FHI4818T-X-900-DD 5 HP 900 10,800 31,400 30,400 29,500 28,500 27,400 FHI4819T-X-900-DD The “FHI” series severe duty supply or • Heavy duty self aligning ball 48" 7 1/2 900 10,800 38,700 37,700 36,700 35,700 34,500 FHI481AT-X-900-DD exhaust fans come in belt bearing pillow blocks, to ensure 10 HP 1,200 14,500 38,500 37,800 37,000 36,300 35,600 FHI481BT-X-1200-DD FHI481BHL-X-1200-DD or direct drive models and are ideal long maintenance free operation 15 HP 1,200 14,500 48,600 47,800 47,100 46,400 45,700 FHI481CT-X-1200-DD FHI481CHL-X-1200-DD for applications that have higher • 5 HP 900 12,200 36,500 35,100 32,900 31,300 28,300 FHI5419T-X-900-DD Taper lock bushing between 54" 7 1/2 900 12,200 47,300 46,000 43,400 41,200 38,500 FHI541AT-X-900-DD performance requirements. The “FHI” propeller and shaft for ease 10 900 12,200 51,800 49,800 48,300 46,200 44,800 FHI541BT-X-900-DD series severe duty fans come standard of removal, should it become 5 900 13,500 38,700 36,300 34,300 31,900 29,500 FHI6019T-X-900-DD necessary with cast aluminum airfoil blades and are 60" 7 1/2 900 13,500 44,000 42,300 40,600 39,000 37,300 FHI601AT-X-900-DD designed to operate in factories, steel • Heavy duty V belt drive with 10 HP 900 13,500 48,800 47,100 45,500 43,800 42,100 FHI601BT-X-900-DD cast iron sheaves, dynamically *See page 105 for information on hazardous location models. mills, processing facilities, warehouses, balanced fan and motor sheaves and more. and extra strength V belts Features • Split tapered standard drive hubs • 16” to 84” blade diameter models available permit easy removal of the fan (60” for direct drive) from the shaft for maintenance • 3,610 CFM to 115,800 CFM purposes • Durable gray polyester powder coat finish • Optional temperature control available for some models • Deep spun venturi type orifice for quieter, more efficient operation • Rugged all welded structural frame for added support and lower vibration EXHAUST AND SUPPLY FANS & SHUTTERS: FHI DIRECT DRIVE 77 csr@sunshieldbest.com ⊲ 616-881-1800 ⊲ Sunshieldbest.com

FHI BELT DRIVE MODELS FHI BELT DRIVE MODELS Performance Totally Enclosed Hazardous Location* Diam HP Tip Speed 0.0 SP .125 SP .25 SP .375 SP .50 SP 1PH 3PH 1PH 3PH Performance Totally Enclosed Hazardous Location* 7 1/2 HP 9,580 51,200 48,700 46,200 43,300 40,000 FHI601AT-X-BD FHI601AHL-X-BD Diam HP Tip Speed 0.0 SP .125 SP .25 SP .375 SP .50 SP 1PH 3PH 1PH 3PH 60” 10 HP 10,400 55,400 53,000 50,700 48,200 45,200 FHI601BT-X-BD FHI601BHL-X-BD 15 HP 12,000 64,300 62,200 60,200 58,200 56,100 FHI601CT-X-BD FHI601CHL-X-BD 1/2 6,660 5,480 4,920 4,310 3,520 2,030 FHI2413T-U-BD FHI2413T-X-BD FHI2413HL-U-BD FHI2413HL-X-BD 3 HP 9,610 46,800 40,800 33,600 23,600 12,400 FHI7218T-U-BD FHI7218T-X-BD FHI7218HL-U-BD FHI7218HL-X-BD 3/4 7,540 6,150 5,660 5,120 4,530 3,750 FHI2414T-U-BD FHI2414T-X-BD FHI2414HL-U-BD FHI2414HL-X-BD 5 HP 7,730 54,500 48,500 42,000 33,000 18,000 FHI7219T-X-BD FHI7219HL-X-BD 24" 1 8,170 6,880 6,450 5,980 5,490 4,920 FHI2415T-U-BD FHI2415T-X-BD FHI2415HL-U-BD FHI2415HL-X-BD 7 1/2 HP 9,610 63,100 58,000 52,600 46,500 38,600 FHI721AT-X-BD FHI721AHL-X-BD 1 1/2 9,420 8,340 7,960 7,570 7,140 6,670 FHI2416T-U-BD FHI2416T-X-BD FHI2416HL-U-BD FHI2416HL-X-BD 72" 10 HP 11,900 70,300 66,100 61,600 57,100 51,700 FHI721BT-X-BD FHI721BHL-X-BD 2 10,600 9,230 8,890 8,550 8,170 7,770 FHI2417T-U-BD FHI2417T-X-BD FHI2417HL-U-BD FHI2417HL-X-BD 15 HP 10,400 77,500 74,000 70,500 67,000 62,800 FHI721CT-X-BD FHI721CHL-X-BD 1/2 6,940 8,380 7,130 5,020 3,570 2,130 FHI3013T-U-BD FHI3013T-X-BD FHI3013HL-U-BD FHI3013HL-X-BD 20 HP 11,500 86,000 82,800 79,600 76,500 73,300 FHI721DT-X-BD FHI721DHL-X-BD 3/4 6,990 9,810 8,730 7,430 5,820 2,990 FHI3014T-U-BD FHI3014T-X-BD FHI3014HL-U-BD FHI3014HL-X-BD 5 HP 7,480 64,800 56,400 46,800 34,500 15,200 FHI8419T-X-BD FHI8419HL-X-BD 1 7,700 10,800 9,830 8,690 7,410 4,850 FHI3015T-U-BD FHI3015T-X-BD FHI3015HL-U-BD FHI3015HL-X-BD 7 1/2 HP 9,020 78,100 71,200 63,900 55,700 45,800 FHI841AT-X-BD FHI841AHL-X-BD 30" 1 1/2 8,640 11,500 10,700 9,800 8,820 7,700 FHI3016T-U-BD FHI3016T-X-BD FHI3016HL-U-BD FHI3016HL-X-BD 10 HP 9,700 84,000 77,600 71,100 63,500 55,500 FHI841BT-X-BD FHI841BHL-X-BD 2 9,820 13,800 13,000 12,200 11,300 10,400 FHI3017T-U-BD FHI3017T-X-BD FHI3017HL-U-BD FHI3017HL-X-BD 84" 15 HP 11,200 97,200 91,600 86,000 80,100 73,500 FHI841CT-X-BD FHI841BHL-X-BD 3 11,400 16,100 15,000 14,800 14,100 13,300 FHI3018T-U-BD FHI3018T-X-BD FHI3018HL-U-BD FHI3018HL-X-BD 20 HP 11,900 108,600 103,300 98,000 92,500 86,500 FHI841DT-X-BD FHI841BHL-X-BD 5 13,700 18,200 17,800 17,300 16,700 16,100 FHI3019T-X-BD FHI3019HL-X-BD 25 HP 12,300 115,800 110,400 104,900 99,500 93,800 FHI841ET-X-BD FHI841BHL-X-BD 1 7,730 14,200 12,500 10,600 7,940 4,620 FHI3615T-U-BD FHI3615T-X-BD FHI3615HL-U-BD FHI3615HL-X-BD *See page 105 for information on hazardous location models. 1 1/2 8,860 16,200 14,800 13,300 11,400 8,610 FHI3616T-U-BD FHI3616T-X-BD FHI3616HL-U-BD FHI3616HL-X-BD 2 9,710 17,800 16,600 15,300 13,700 11,900 FHI3617T-U-BD FHI3617T-X-BD FHI3617HL-U-BD FHI3617HL-X-BD 36" 3 11,000 20,300 19,200 18,000 16,800 15,400 FHI3618T-U-BD FHI3618T-X-BD FHI3618HL-U-BD FHI3618HL-X-BD 5 13,200 24,100 23,100 22,200 21,200 20,200 FHI3619T-X-BD FHI3619HL-X-BD 7 1/2 15,100 27,700 26,900 26,100 25,200 24,400 FHI361AT-X-BD FHI361AHL-X-BD 1 7,030 15,500 14,000 12,100 9,400 5,100 FHI4215T-U-BD FHI4215T-X-BD FHI4215HL-U-BD FHI4215HL-X-BD 1 1/2 6,120 18,000 16,000 13,600 9,900 5,900 FHI4216T-U-BD FHI4216T-X-BD FHI4216HL-U-BD FHI4216HL-X-BD 2 6,980 20,500 18,700 16,900 14,400 9,600 FHI4217T-U-BD FHI4217T-X-BD FHI4217HL-U-BD FHI4217HL-X-BD 42" 3 7,810 22,900 21,400 19,800 18,000 15,600 FHI4218T-U-BD FHI4218T-X-BD FHI4218HL-U-BD FHI4218HL-X-BD 5 9,470 27,800 26,500 25,200 23,900 22,400 FHI4219T-X-BD FHI4219HL-X-BD 7 1/2 10,800 31,800 30,600 29,500 28,400 27,300 FHI421AT-X-BD FHI421AHL-X-BD 10 12,000 35,300 34,300 33,300 32,300 31,300 FHI421BT-X-BD FHI421BHL-X-BD 1 7,590 21,200 18,300 13,900 6,300 FHI4815T-U-BD FHI4815T-X-BD FHI4815HL-U-BD FHI4815HL-X-BD 1 1/2 5,970 22,800 19,800 16,000 8,600 5,200 FHI4816T-U-BD FHI4816T-X-BD FHI4816HL-U-BD FHI4816HL-X-BD 2 7,110 27,000 24,400 21,500 18,000 FHI4817T-U-BD FHI4817T-X-BD FHI4817HL-U-BD FHI4817HL-X-BD 48" 3 8,210 31,400 27,000 24,300 21,200 11,100 FHI4818T-U-BD FHI4818T-X-BD FHI4818HL-U-BD FHI4818HL-X-BD 5 9,610 36,700 34,800 32,900 31,000 28,600 FHI4819T-X-BD FHI4819HL-X-BD 7 1/2 11,000 42,100 40,500 38,800 37,200 35,500 FHI481AT-X-BD FHI481AHL-X-BD 10 12,100 46,400 44,900 43,400 41,900 40,400 FHI481BT-X-BD FHI481BHL-X-BD 2 6,930 29,000 25,900 22,000 13,300 7,100 FHI5417T-U-BD FHI5417T-X-BD FHI5417HL-U-BD FHI5417HL-X-BD 3 7,780 33,200 30,500 27,700 23,700 14,900 FHI5418T-U-BD FHI5418T-X-BD FHI5418HL-U-BD FHI5418HL-X-BD 54" 5 9,330 39,800 37,500 35,200 32,700 29,400 FHI5419T-X-BD FHI5419HL-X-BD 7 1/2 10,700 45,400 43,400 41,400 39,500 37,100 FHI541AT-X-BD FHI541AHL-X-BD 10 11,700 49,700 47,900 46,100 44,300 42,400 FHI541BT-X-BD FHI541BHL-X-BD 2 7,460 33,300 28,900 23,100 14,000 FHI6017T-U-BD FHI6017T-X-BD FHI6017HL-U-BD FHI6017HL-X-BD 60" 3 6,440 34,400 30,700 25,900 16,800 FHI6018T-U-BD FHI6018T-X-BD FHI6018HL-U-BD FHI6018HL-X-BD 5 8,010 43,300 40,300 37,100 33,200 28,000 FHI6019T-X-BD FHI6019HL-X-BD *See page 105 for information on hazardous location models. 78 EXHAUST AND SUPPLY FANS & SHUTTERS: FHI BELT DRIVE EXHAUST AND SUPPLY FANS & SHUTTERS: FHI BELT DRIVE 79 csr@sunshieldbest.com ⊲ 616-881-1800 ⊲ Sunshieldbest.com csr@sunshieldbest.com ⊲ 616-881-1800 ⊲ Sunshieldbest.com
