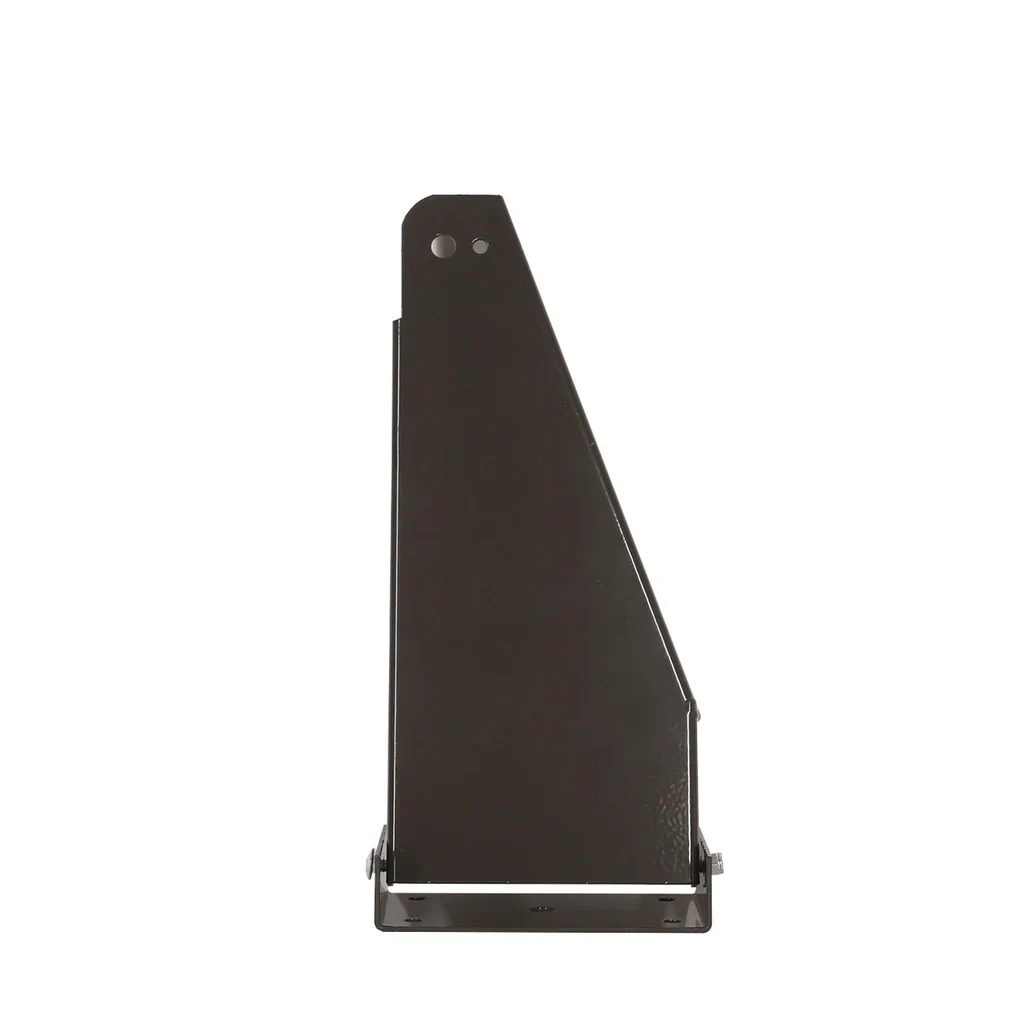

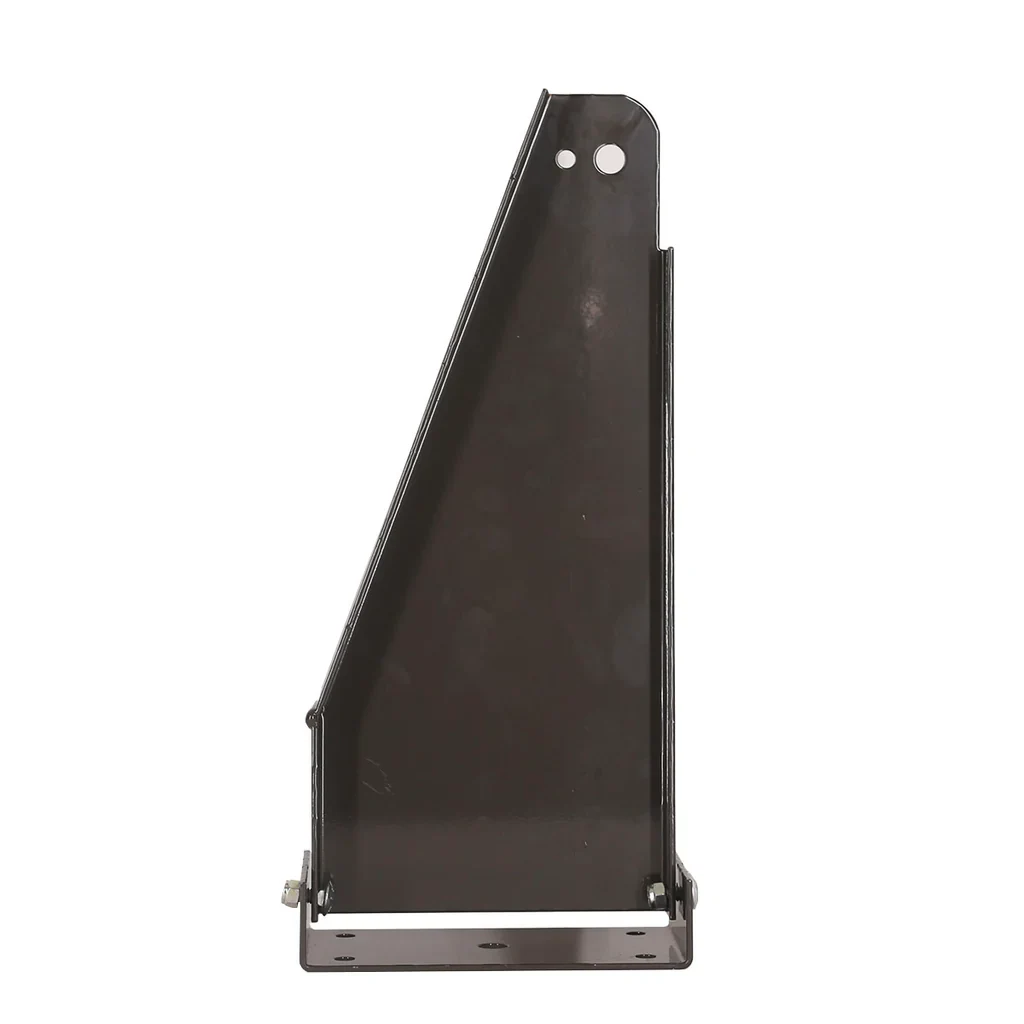

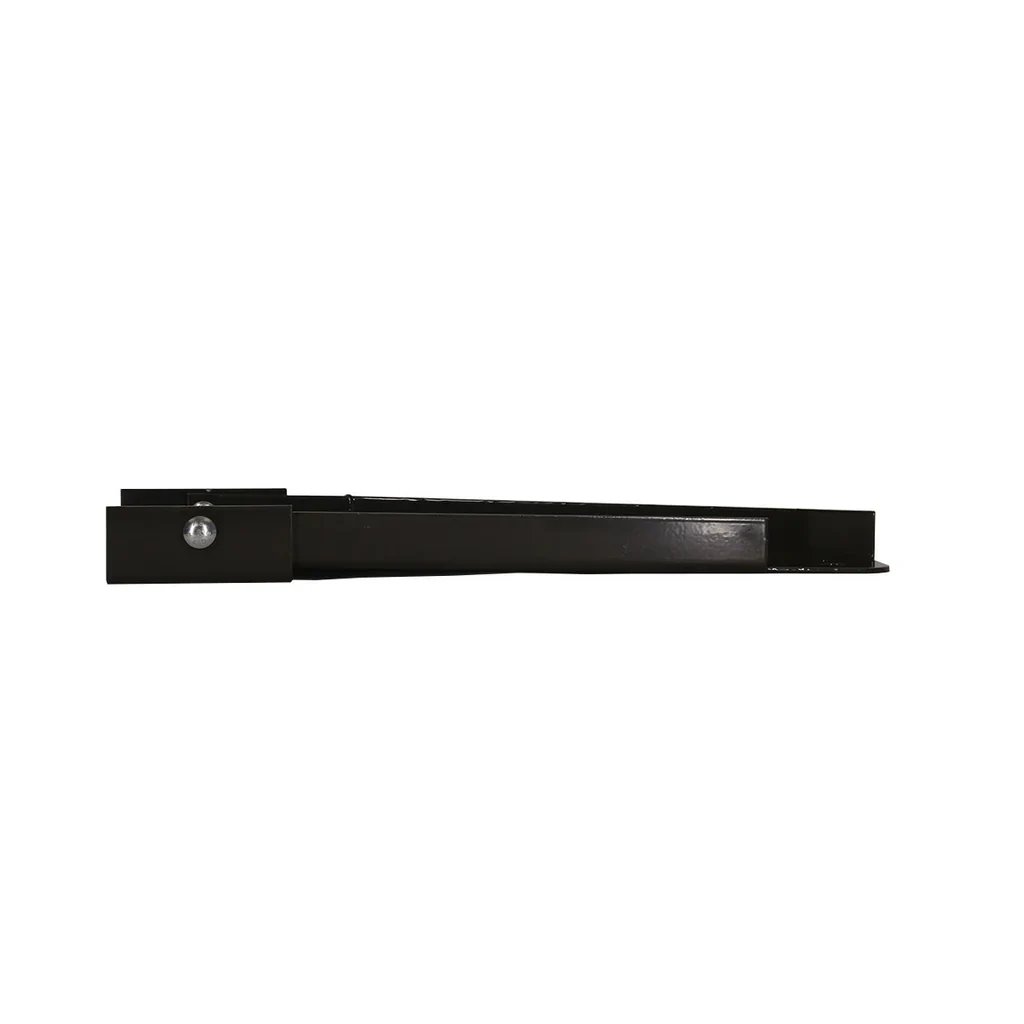

Wall/Beam Bracket For Amb

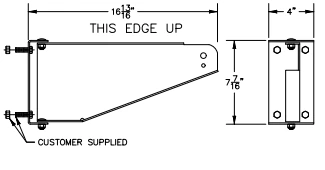

32 33 csr@sunshieldbest.com ⊲ 616-881-1800 ⊲ Sunshieldbest.com PEDESTAL FANS: THE MASTER BREEZE FANS AND MOUNTS csr@sunshieldbest.com ⊲ 616-881-1800 ⊲ Sunshieldbest.com PEDESTAL FANS: THE MASTER BREEZE FANS AND MOUNTS MASTER BREEZE Model Diameter HP Amps CFM RPM Approximate Weight AMB2421H 24” 1/4 6.2 6,100 / 4,300 1100 66 AMB2423H 24” 1/2 6.2 7,800 / 5,300 1100 66 AMB3021H 30” 1/4 6.2 7,200 / 5,400 1100 66 AMB3023H 30” 1/2 6.2 8,800 / 6,400 1100 66 Dimensions “AMB” Series Diameter A B 24” 16” 28” 30” 16” 34” A B Available Mounting Equipment Description Part Number Pedestal Base 2430PB-AMB Column Mount 2430WC Ceiling Mount 2430S The Master Breeze is designed to accommodate a wide range of mounting options. Our mounting options include a pedestal base, a ceiling mount and a column mount. Mounting hardware not included. MASTER BREEZE MOUNTING EQUIPMENT Pedestal Base Suspension Mount Column Mount
